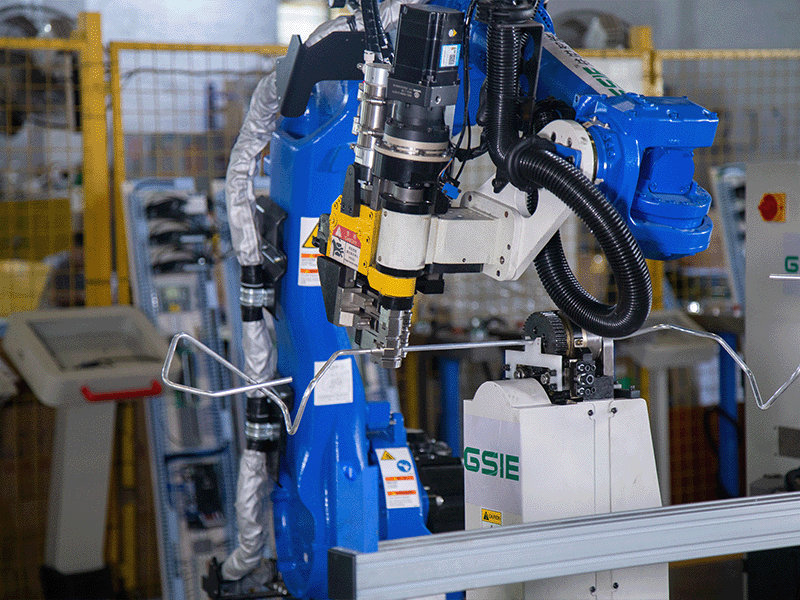

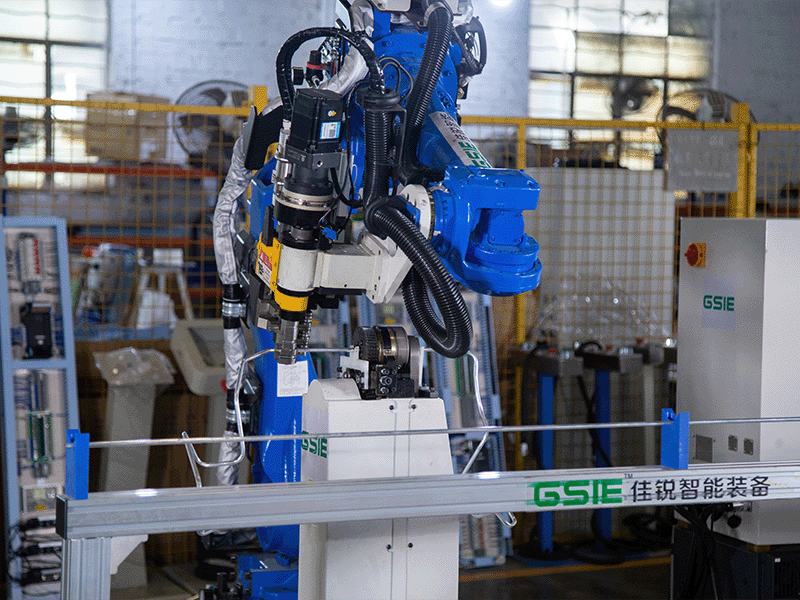

Robot Bending Machine

lexibility and automation greatly improved by industral robot with bending device on mechanical arm. The bending device can rotate with bending clamping mold for the  complex bending with multiple radius and layer molds .So the robot bending machine have great advantage for abnornal bending compare with

traditional bending machine.High efficency with about 50% faster on bending speed than similar machine.And after bending the fitting part can be transferred to designed location directly by the robot which is much important to realize the automatic production line .

Model R-Bend15-S-3000
Processing pipe diameter range ф5~ф12.7mm, thickness t1.0mm
Maximum processing pipe length 3000mm
The shortest processing pipe length 300mm
Bending radius 185°
Maximum rotation angle ±360°
Bent pipe efficiency 1.8-2.5second/bend

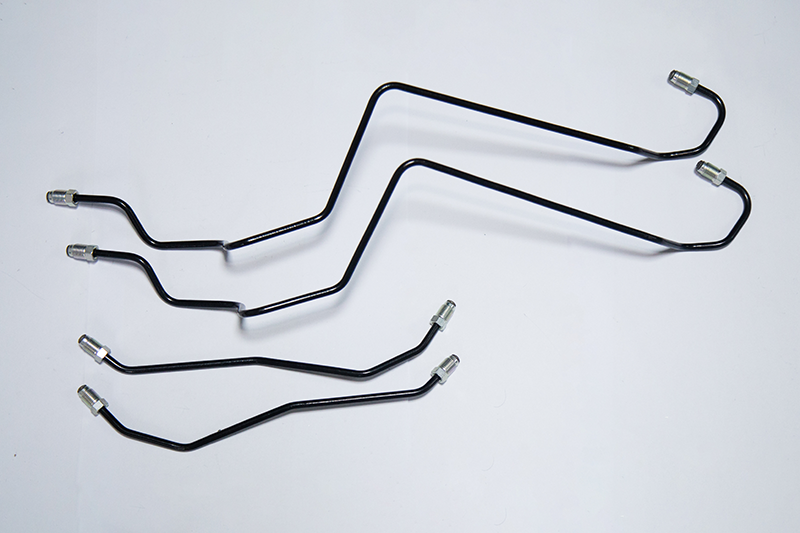

End-Product Drawing
