WXJ-12-6

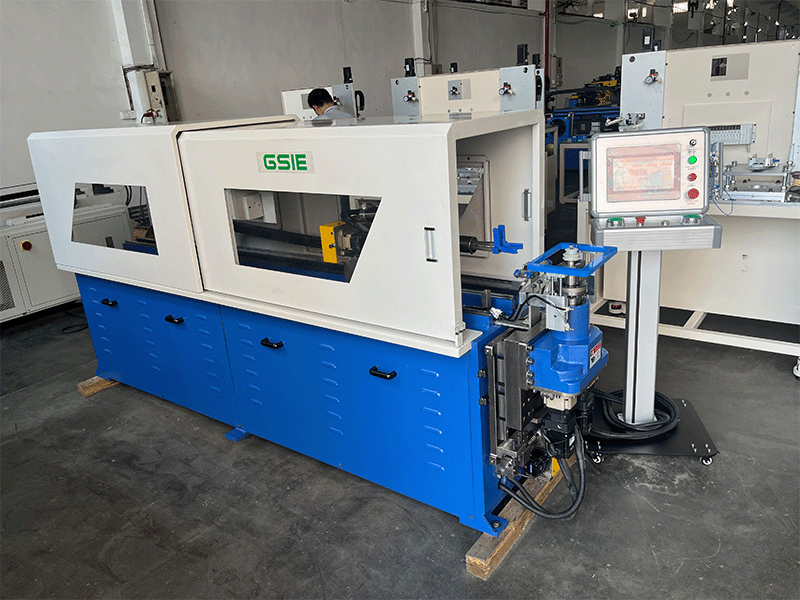

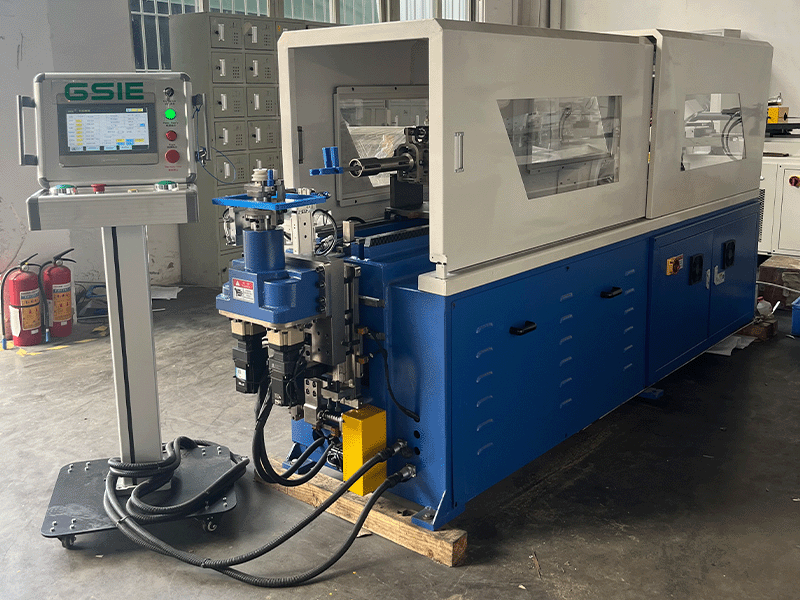

The WXJ series CNC wire bending machine is a specialized processing equipment designed for solid wire bending, capable of bending wires with diameters ranging from ф 4 to ф 12 (copper, aluminum). The wire clamping mechanism of this machine adopts pneumatic control, with Y, B, and C coordinates. The head lifting, lateral movement, wheel mold rotation, and lever rotation are driven by servo. The whole machine control adopts microcomputer control, which can achieve complex functions such as four axis synchronous movement, active bending, and passive bending.

Main Specifications parameter
Maximum bending specifications Ф12
Bending radius R8~R40
Active machining workpiece length 2300mm
Maximum bending angle 190°
Maximum rotation angle ±360°
Bending efficiency 1.8-2.5 seconds/turn
Maximum feeding speed 1000mm/S
Mould Double layer mold
Maximum bending speed 360°/S
Maximum rotation speed 720°/S
X-axis repeatability ±0.05mm
Y, Z axis repeat positioning accuracy ±0.1°
Power specifications 380±10V,50Hz
Air source pressure 0.4-0.7Mpa
Overall dimensions (length x width x height) 3000×600×1100mm
