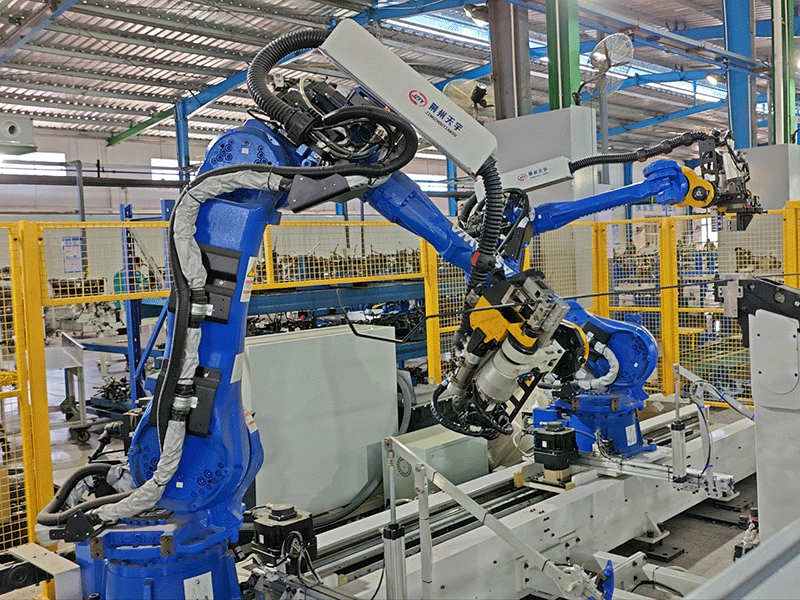

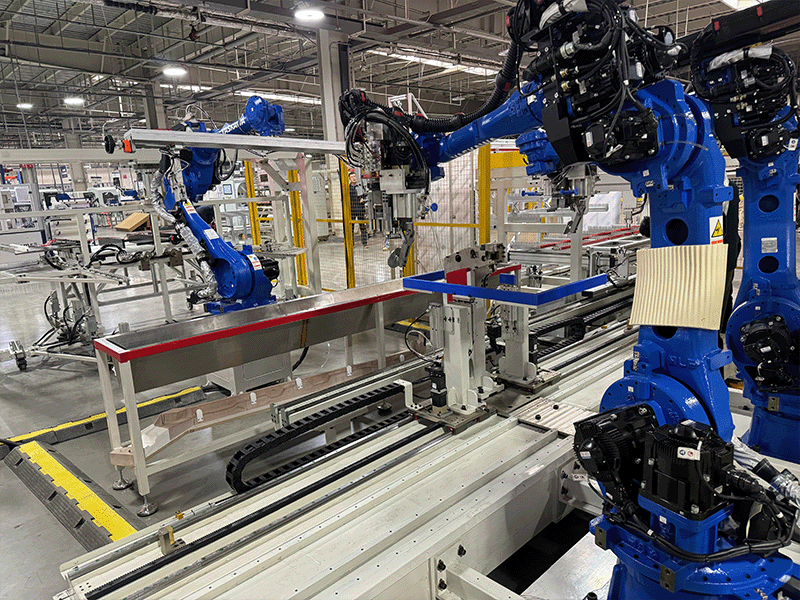

Dual Robot Pipe Bending Machine

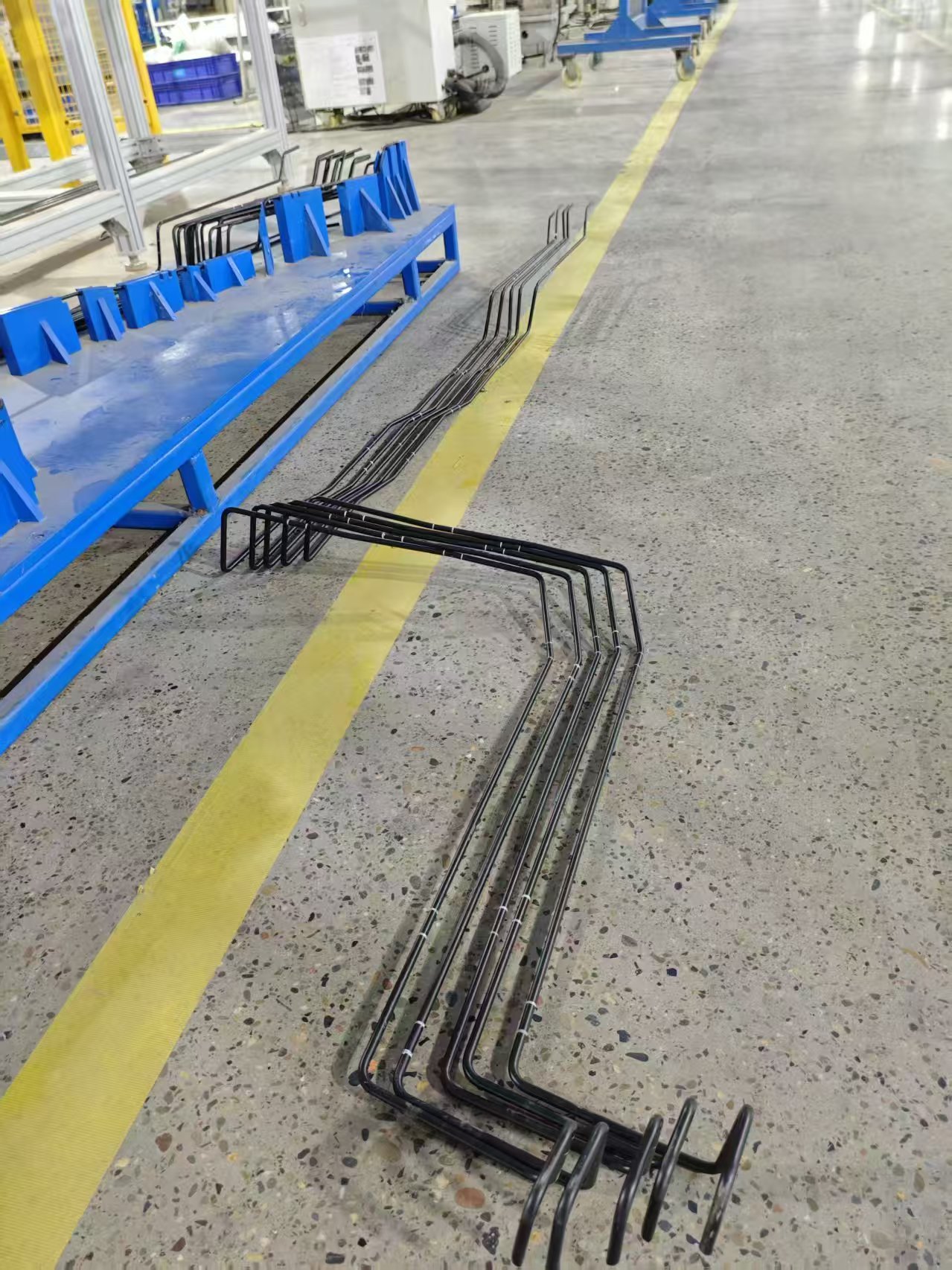

This equipment is a dedicated processing machine specifically designed for the   bending of long pipe fittings. It can bend copper pipes, aluminum pipes and iron pipes with diameters ranging from ф5 to ф12.7mm and wall thicknesses of 1mm. This machine has excellent stability, good repeatability and high efficien- cy, and is highly suitable for the bending processing of complex pipe fittings.

The operating system adopts three-coordinate XYZ input and can also convert Y.B.C processing data input. The operation is flexible and simple!

Model R-Bend15-D-5000
Processing pipe diameter range ф5~ф12.7mm, thickness t1.0mm
Maximum processing pipe length 5000mm
The shortest processing pipe length 1000mm
Bending radius 185°
Maximum rotation angle ±360°
Bent pipe efficiency 1.8-2.5 second/bend
